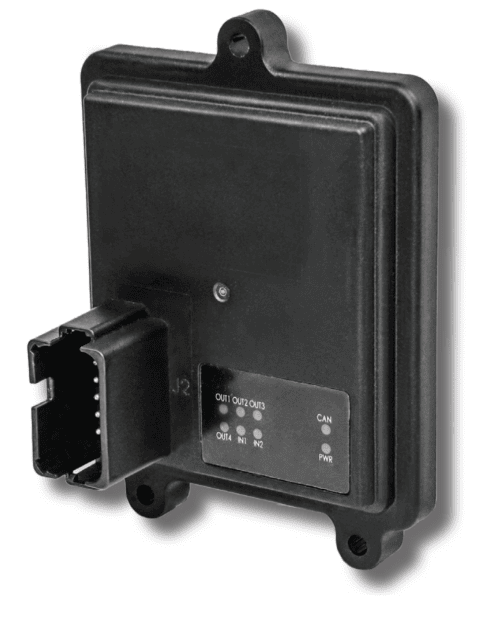

Overview of the 2 Input 4 output Module
The 2 Input 4 Output module uses a 12-pin sealed Deutsch connector (DT04-12PA equivalent). All outputs on this module may be configured as a sourcing digital output or a PWM Output. All inputs on this module may be configured as a sourcing digital input, a 32V analog input, a 4-20mA current-reading analog input, or 0-5V ratio metric input. This module uses J1939 Proprietary Peer-to-Peer Messaging.
Product Features
- SAE J1939 communication protocol
- Up to 3A per Output
- PWM or Digital
- LED status indicators
- Output short circuit, overload, and open load detection and protection
- Inputs, Outputs digital sourcing, analog, frequency or ratio metric
