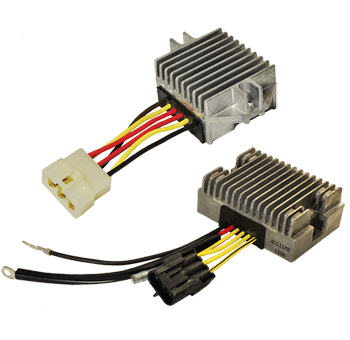

The Full Wave Voltage Regulator is an economical mid-power solution typically used in Lawn & Garden Engines or other low power applications.
Product Overview
- Full wave 30 AMP regulator/rectifier with charging shutdown in response to over-voltage conditions
- Unit protected against: Reverse battery condition, open circuit and short circuit operation. External fuse protection is recommended
- For mating terminal and connector parts use packard electrical terminal #2965142 and connector body #2984959
- Regulator to be used with 12 volt negative ground battery
- Voltage at regulation 14.1 ± 0.2 volts at 70°, 3600 RPM
- Maximum S.C.R temperature not to exceed 205° at 25 AMPS
- Reverse Current: 1 milliamp maximum at 12.6V at 70°F
- Remove sharp edges on terminals both sides
- Temperature compensation range to be from -5 millivolts/°F to -15 millivolts/°F
- Encapsulate unit with polyurethane
- Current at regulation .5 AMPS maximum at 70°F
- Minimum regulator turn on voltage to be 6.0 volts max
- Regulator to discontinue charging in response to battery over-voltage. Overvoltage setpoint to be: 18.5V ± 1.2V at 70°F. Regulator shall not resume charging until stator falls below 20V peak at 70°F. Regulators to be 100% tested on these parameters.
